AS3992 Long Range UHF RFID reader UART(ISO18000-6C EPC G2)

AS3992 Long Range UHF RFID reader UART(ISO18000-6C EPC G2)

Starting at: $177.00

Description

Long Range UHF RFID Reader is an important way to read information and input information. Automatic identification technology has been developed in recent years. Now it is a new high technology which includes barcode technology, magnetic strip (card) technology, RF technology, optical character recognition technology, and biological recognition, distance Card Reader and etc.

In normal case, UHF RFID tags need less power than the reader which needs to have high receiving sensitivity.  In certain system, the transmit path and receive path are independent of each other in the reader, especially when the uplink and downlink have different frequency.



Technically, different applications can choose different transmit power. However, there are regulations that need to be met. Usually the RF power 100mW~500mW is suitable for all kinds of RFID distance reader system. In different regions and areas, the reader has to follow different regulations.



SOLID-399X distance reader has many advantages such as: compatibility with different protocols, high reading speed multi-tags reading, linearly polarized antenna, waterproof appearance designing and etc. It can be widely used in RFID systems, and is very friendly to further development based on it.



Typical applications:

  •  Logistics and warehouse management: Management of goods flow and storage, and mail, package, luggage transportation and etc.
  •  Intelligent parking management:Parking management and charge automation.
  •  Production-line management: Identification of production process points.
  •  Product anti-counterfeiting detection: the write protection from tag’s internal memory can be used to detect the products’  authenticity
  •  Other application: widely used in club management, libraries, student status, consumption management, swimming pool management and etc.



    When the UHF RFID reader is powered on and connected to PC, it can be identified by the PC software. It means the reader is working normally. When the tag is close to the reader, the PC software will show signal strength and tag ID. This RFID reader can identify many tag IDs at the same time.



    This UHF RFID reader uses RF energy harvest to read tag data. Keep it far away from metal when use it. If it closes to the metal, the RF wave will be absorbed by it which can shorten the distance of card reading. The installation position should be away from the equipment like motor, transformer and etc, to reduce the effect on the reader.



    According to the actual needs, this UHF RFID reader can be with the most suitable directional antenna with appropriate gain (5.5dBi, 8dBi and etc) to achieve the best performance.



    There are two different interfaces: TTL UART and USB.

 Recommended antenna can be ordered at: http://www.soliddepot.com/index.php?main_page=product_info&cPath=7&products_id=41





Specifications

Working Frequency

China standard (920~925MHz), American standard (902~928MHz), European standard (865~868MHz) , 840MHz~960MHz working frequency

Protocol

ISO18000-6C (EPC GEN2), compatible ISO18000-6A/B

Antenna gain

8dBi directional antenna

RF power

MAX 20dBm

Card reading distance

Passive tags identification distance adjusting range1 to 6 meters

Card reading time

Reading time of multi-tags 64 bit ID <6ms

Modulation mode

ASK or PR-ASK

Antenna interface

MMCX

Supporting interface

High speed USB or TTL Uart (RS232) communicate with PC applications

Working power

DC3.3V 2A; +5.5V optional

Read indicator

Can be programmed. GPIO output can be set

Power

1.5W-2W

Working temperature

20 degree C  +80 degree C

Storage temperature

40 degree C to +125 degree C

Working humidity

20% to 95 % (No condensation)

Dimensions

90mm×49mm×0.51mm

Antenna dimensions

8”× 12”×2”







This board is UART version, it is only compatible with UART interface.

1. If you want to program the MCU on the board, you also can buy the C8051F simulator from here:

http://www.soliddepot.com/uec3-uec5-uec6-c8051f-microcontroller-usb-simulator-p-187.html

2. We have some kits of this reader. With this, you will not worry about what accessories you need.

http://www.soliddepot.com/index.php?main_page=index&cPath=38_42

3. How to quick start to test if the AS3992 reader works?

https://www.soliddepot.com/forum/viewtopic.php?f=22&t=40343

Download:

 Tutorial:

Soliddigi UHF RFID frequency setting up

Tutorial of Ethernet Based UHF RFID Reader

Tutorial of Xbee Based Arduino Mega UHF RFID Reader

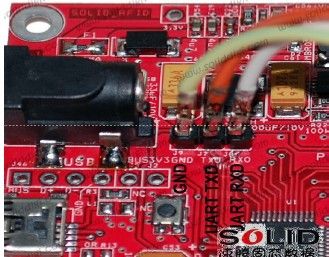

UART Pin Header for UHF RFID reader module

UART TTL Interface:
