Quad-band GPRS/GSM Shield for Arduino UNO (SM5100B-D Module)

Quad-band GPRS/GSM Shield for Arduino UNO (SM5100B-D Module)



This is an Arduino Shield for SM5100 quad-band GSM/GPRS module. The module is included.

Two jumpers can be used to select if the SM5100 module is talking to soft serial port, serial port of arduino, or USB.

J1 and J2 are used to choose how RX/TX of SM5100B is going to connected to Arduino.
RX/TX is the RX/TX of SM5100B module.
MTX/MRX is the TX/RX of Atmega328.
D3 and D2 are the I/O of Atmega328 if soft serial is used.
Connect RX to MRX, and remove atmega328, so USB port of arduino can be used to directly to talk to SM5100B.

Connect RX to MTX,  and keep atmega328, so SM5100B can talk to the MCU.

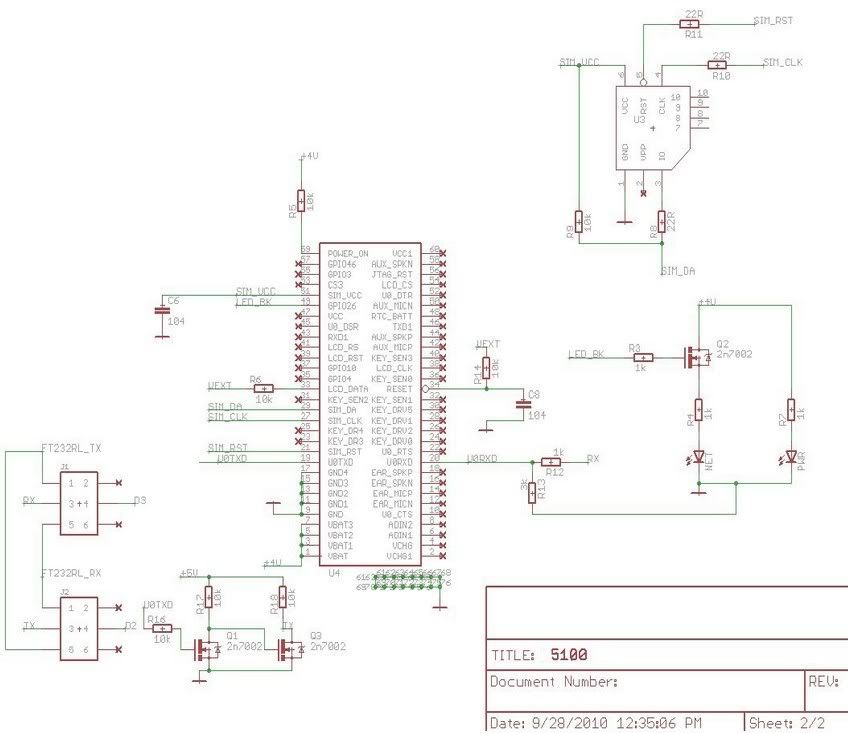

Schematics of GPRS/GSM Arduino Shield:

USA providers are all on 850/1900Mhz and pratically all the rest of the world uses 900/1800Mhz.

Solid SM5100B GSM/GPRS module: a miniature, single-side board, quad-band GSM 850/EGSM 900/DCS 1800/PCS 1900 module, ready for integration in various kinds of Fix wireless phones and other wireless devices.

Temperature range

Normal range: -10°C to +55°C (full compliant)

Storage: -40°C to +85°C


< 9g

Physical dimensions

35.0X39.0X2.9 mm (typical)


60 pins

Power supply

VBAT: 3.3V to 4.2V range, 3.6V typical.

Power consumption

Off mode: <100uA

Sleep mode: <2.0mA

Idle mode: <7.0mA (average)

Communication mode: 350 mA (average,GSM)

Communication mode: 2000mA (Typical peak during TX slot,GSM)

Li-ion Battery charging management and interface (OPTION)

Li-ion Battery charging management is included. The charger interface is provided on 60-pin connector. (only for 3.7V Li-ion Battery)

Frequency bands

EGSM900 +GSM850+ DCS1800+PCS1900

Transmit power

Class 4 (2W) for EGSM900/GSM850

Class 1 (1W) for DCS1800/PCS1900

Supported SIM card

3V/1.8V SIM card. (auto recognise)

Keyboard interface

4x6 keyboard interface is provided

UART0 interface with flow control

Up to 460 kbps

Full hardware flow control signals (+3.0V) are provided on 60 pins.

UART1 interface without flow control

2-Wire UART interface

Up to 460 kbps

LCD interface

Support standard SPI interface


Add to Cart:

  • Model: ARDUINO_SM5100_GPRS_E18
  • 100 Units in Stock
  • Manufactured by: SOLID Technologies
